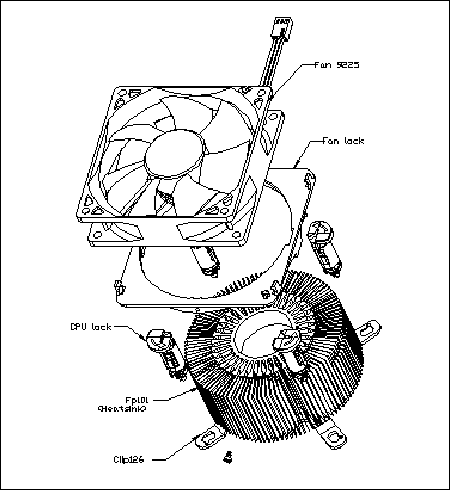

P4-Prescott LGA775 Cooler
UP-92N
For Intel P4 Prescott LGA775 CPU COOLER 3.6GHz
Copper Core with 108 fins
3pin Connector
SPECIFICATIONS
Fan( Per Fan )
9225
Operation Voltage
DC 10.2 ~ 13.8 V
Rated Voltage
DC 12V
Input Current
0.41A MAX.
Input Power
4.92W MAX.
Bearing System
Sleeve and Ball Bearing
NCB
Fan Speed(RPM)
3600±15 %
Max. Air Delivery(CFM)
74.89±15 %
Noise Level
45.2±2 dBA
Fan Safety
UL Approved
Fan with RPM signal output
Yes
Heatsink
Dimension
90 x 42 mm
Material
Aluminum(6063) & Copper(1100)
CLIP
Retention Clip
Steel(K7)
Thermal Interface
High thermal conductive interface
Material
Shin-Etsu G7762
Connector
2510 or 2695-3P
Total Weight
603.5 g
* NCB = Nano-Ceramic Bearing
90 x 42 mm
